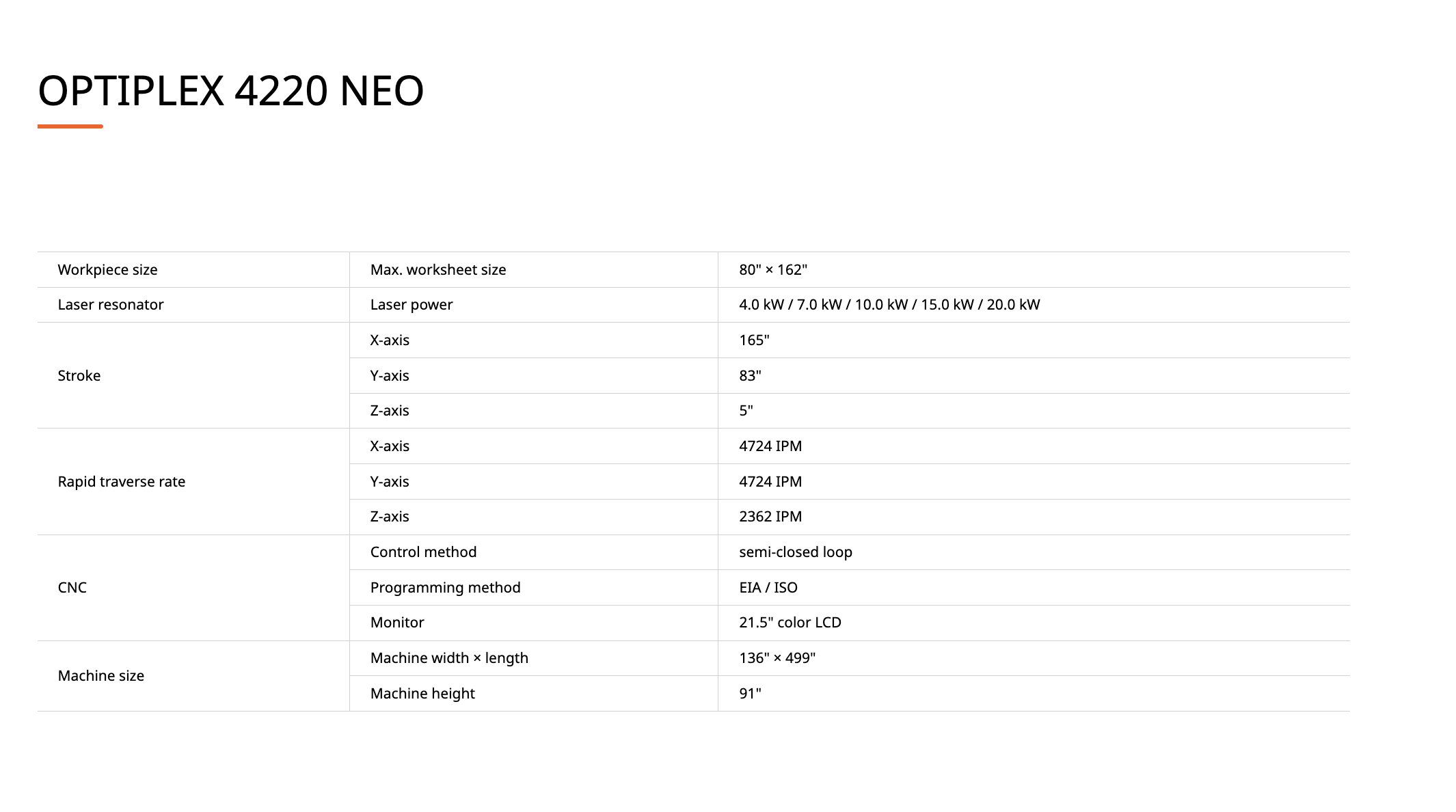

OPTIPLEX 4220 NEO
Product Details
The OPTIPLEX NEO is a 2D fiber laser-cutting system equipped with technology that allows increased control of beam shape and beam diameter. Available in 3015 and 4220 table sizes and 20kW, 15kW, 10kW, 7kW, and 4kW power levels, the OPTIPLEX NEO features state-of-the-art Variable Beam fiber laser technology that delivers high-speed, high-quality cutting for optimal performance across a wide range of materials.
Large front and side access doors offer full-width and full-length opening. Minimized work area restrictions make it easier for operators to load material onto the machine and unload finished parts.
The new MAZATROL SmoothLx CNC control features a large 21.5” screen and touch panel. Dual monitors allow multiple applications to run simultaneously. Additionally, the CNC control rotates, giving operators the flexibility to work at the front or side of the machine.
Mazak’s OPTIPLEX NEO is equipped with numerous Intelligent Functions—including Nozzle Changer, Nozzle Centering Camera, and Camera Assisted Part Nesting. These Intelligent Machine functions utilize innovative technology to support operators and ensure maximum machine performance.
